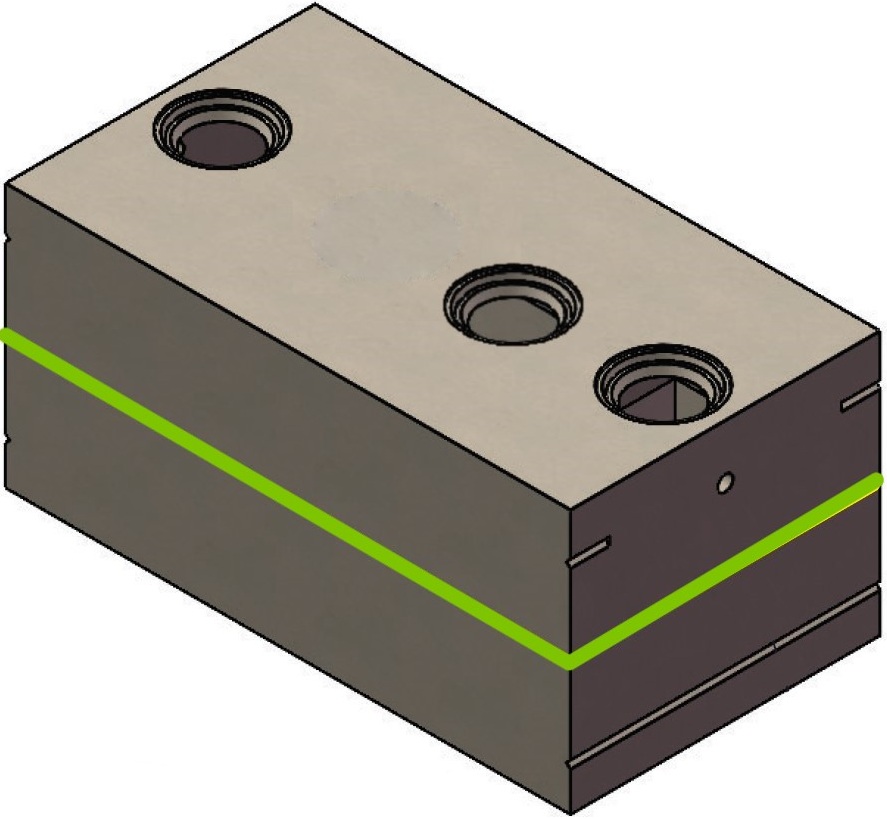

Mid Seam TraditionalOur most common tanks have a seam at the vertical center. Most often come pre-tarred but upon request can be left un-tarred to be set by the customer.
|
Mid Seam Traditional Single Compartment |
Length |
Width |
Height |
Inlet |
Outlet |
Weight (lbs.) |
| 1000 Gallon Pump Chamber |
96" |
60" |
68" |
55" |
52" |
9,200 |
| 1000 Gallon Pump Chamber Low Boy |
126" |
68" |
52" |
39" |
36" |
10,000 |
| 1500 Gallon Single Compartment |
126" |
68" |
68" |
55" |
52" |
12,430 |
| 1500 Gallon Single Compartment Low Boy |
146" |
80" |
56" |
43" |
40" |
15,670 |
| 2000 Gallon Single Compartment |
146" |
80" |
68" |
55" |
52" |
17,465 |
Mid Seam Traditional Two Compartment |
Length |
Width |
Height |
Inlet |
Outlet |
Weight (lbs.) |
| 1000 Gal. Sep. Tank/500 Gal. PC Combo |
126" |
68" |
68" |
55" |
52" |
12,930 |
| 1500 Gallon Two Compartment |
126" |
68" |
68" |
55" |
52" |
12,930 |
| 1500 Gallon Two Compartment Low Boy |
146" |
80" |
56" |
43" |
40" |
16,170 |
| 1500/500 (2000 Gallon) 3/4-1/4 Combo Tank |
146" |
80" |
68" |
55" |
52" |
17,965 |
| 2000 Gallon Two Compartment |
146" |
80" |
68" |
55" |
52" |
17,965 |
 |
Mid Seam HeavyReplacing traditional ballast, our heavy tanks have a much higher level of structural integrity with the extra weight being distributed evenly throughout the entire tank as opposed to creating weak spots by adding all the extra weight on top. While our heavy tanks are stronger than our traditional tanks, they are not traffic rated.
|
Mid Seam Heavy |
Length |
Width |
Height |
Inlet |
Outlet |
Weight (lbs.) |
| 1000 Gallon Pump Chamber Heavy |
100" |
64" |
72" |
57" |
54" |
14,970 |
| 1000 Gallon Pump Chamber Heavy Low Boy |
132" |
72" |
57" |
42" |
39" |
18,650 |
| 1500 Gallon Single Compartment Heavy |
132" |
72" |
72" |
57" |
54" |
21,000 |
| 1500 Gallon Two Compartment Heavy |
132" |
72" |
72" |
57" |
54" |
22,000 |
 |
Mid Seam H-20These tanks contain rebar reinforcement that adheres to ASTM specifications for H-20 traffic load ratings.
|
Mid Seam H-20 |
Length |
Width |
Height |
Inlet |
Outlet |
Weight (lbs.) |
| 1000 Gallon Pump Chamber H-20 |
100" |
64" |
72" |
57" |
54" |
14,970 |
| 1500 Gallon Single Compartment H-20 |
132" |
72" |
72" |
57" |
54" |
21,000 |
| 1500 Gallon Two Compartment H-20 |
132" |
72" |
72" |
57" |
54" |
22,000 |
 |
Monolithic Top SeamUpon special request, monolithic tanks are made as one complete bottom, with the only seam at the top of the tank.
|
Monolithic Top Seam |
Length |
Width |
Height |
Inlet |
Outlet |
Weight (lbs.) |
| 1000 Gallon Pump Chamber |
96" |
60" |
68" |
55" |
52" |
10,150 |
| 1500 Gallon Single Compartment |
126" |
68" |
68" |
55" |
52" |
13,100 |
| 1500 Gallon Two Compartment |
126" |
68" |
68" |
55" |
52" |
13,800 |
|
Ballast Adder (Dimensions vary per product) |
 |
Plastic Tanks |
Plastic |
Length |
Width |
Height |
Inlet |
Outlet |
Weight (lbs.) |

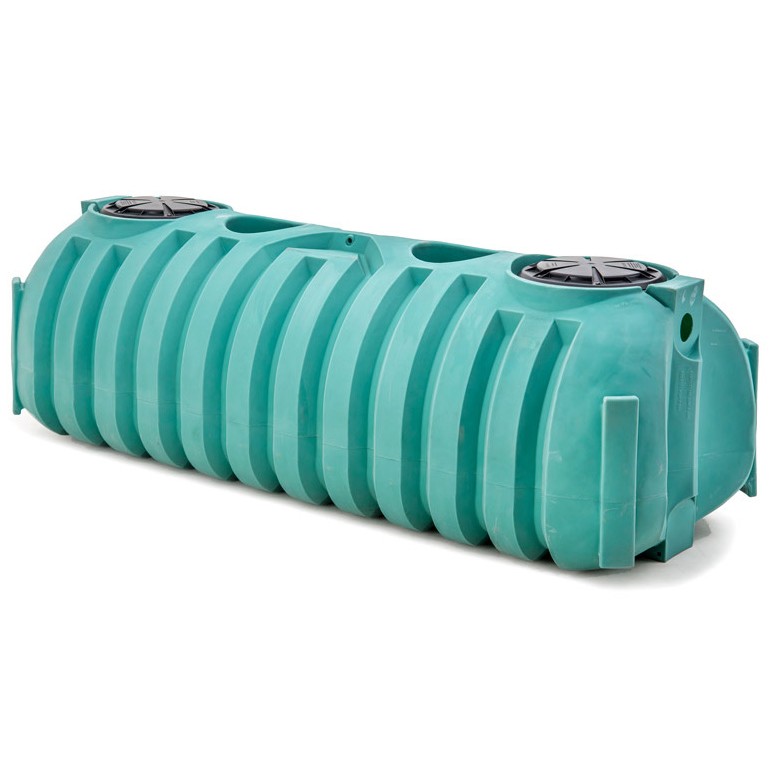

| Norwesco 1000 Gal. Low Profile Septic Tank |
127" |
60" |
51" |
43" |
40" |
370 |
| Norwesco 1500 Gal. Low Profile Septic Tank |
157" |
69" |
51" |
43" |
40" |
574 |
