Tanks & Pump Chambers
![]() |
Mid Seam TraditionalOur most common tanks have a seam at the vertical center. Most often come pre-tarred but upon request can be left un-tarred to be set by the customer. |
Product |
Length |
Width |
Height |
Inlet |
Outlet |
Weight (lbs.) |
1000 Gallon Pump Chamber |
96" |
60" |
68" |
55" |
52" |
9,200 |
1500 Gallon Single Compartment |
126" |
68" |
68" |
55" |
52" |
12,430 |
1500 Gallon Single Compartment Low Boy |
146" |
80" |
56" |
43" |
40" |
15,670 |
1500 Gallon Two Compartment |
126" |
68" |
68" |
55" |
52" |
12,930 |
1500 Gallon Two Compartment Low Boy |
146" |
80" |
56" |
43" |
40" |
16,170 |
1500/500 (2000 Gallon) 3/4-1/4 Combo Tank |
146" |
80" |
68" |
55" |
52" |
17,965 |
2000 Gallon Single Compartment |
146" |
80" |
68" |
55" |
52" |
17,465 |
2000 Gallon Two Compartment |
146" |
80" |
68" |
55" |
52" |
17,965 |
![]() |
Mid Seam HeavyReplacing traditional ballast, our new heavy tanks will have a much higher level of structural integrity with the extra weight being distributed evenly throughout the entire tank as opposed to creating weak spots by adding all the extra weight on top. |
Product |
Length |
Width |
Height |
Inlet |
Outlet |
Weight (lbs.) |
1000 Gallon Pump Chamber Heavy |
132" |
72" |
57" |
42" |
39" |
18,650 |
1500 Gallon Single Compartment Heavy |
132" |
72" |
72" |
57" |
54" |
21,000 |
1500 Gallon Two Compartment Heavy |
132" |
72" |
72" |
57" |
54" |
22,000 |
![]() |
Monolithic Top SeamUpon special request, monolithic tanks are made as one complete bottom, with the only seam at the top of the tank. |
Product |
Length |
Width |
Height |
Inlet |
Outlet |
Weight (lbs.) |
1000 Gallon Pump Chamber |
96" |
60" |
68" |
55" |
52" |
10,150 |
1000 Gallon Low Boy Pump Chamber |
126" |
68" |
46" |
39" |
39" |
10,120 |
1500 Gallon Single Compartment |
126" |
68" |
68" |
55" |
52" |
12,000 |
1500 Gallon Two Compartment |
126" |
68" |
68" |
55" |
52" |
12,500 |
Ballast Adder (Dimensions vary per product) |
![]() |

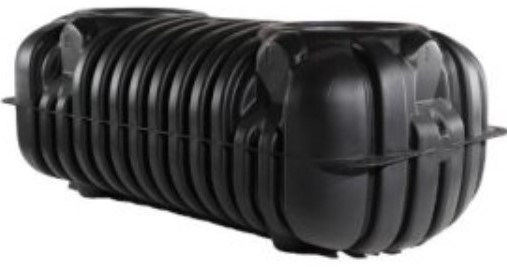

Roth Plastic TanksThe Roth MultiTank® is the first tank of its kind. It can be used for water cistern, pump, holding, rainwater, or septic tank. This is possible due to its special construction of an inner layer of FDA approved virgin HDPE, two inside layers of PE for improved stability, plus one outer layer of black and UV-stabilized PE. Not only is it special in terms of its construction, but it also has the best warranty the industry has to offer: lifetime corrosion protection and 5 years of labor insurance coverage (see warranty for more details). |
Product |
Length |
Width |
Height |
Inlet |
Outlet |
Weight (lbs.) |
1000 Gallon Pump Chamber (RMT-1060) |
133" |
62" |
51" |
44" |
42" |
520 |
1500 Gallon Two Compartment (RMT-1500) |
177" |
62" |
51" |
44" |
42" |
640 |
